XKM-1系列主干線分支線夾(防竊電)

產品中心

XKM-1系列主干線分支線夾(防竊電)

XKM-1系列主干線分支線夾(防竊電)

如果您有任何問題可以聯系我們！
聯系我們


一、產品概述 General

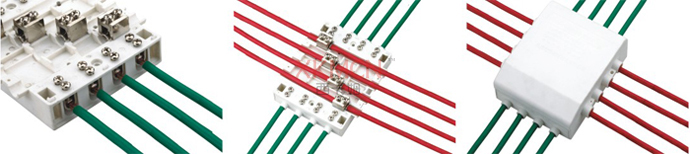

      XKM-1系列主干線分支線夾(防竊電)適用于一戶一表工程電力進戶線與各種分支導線的連接。不需截?cái)嘀骶€(xiàn)纜，可在線纜任意位置做分支。安裝方便，接觸電阻小，溫升低，且有絕緣性能好的防盜竊電護罩。符合 IEC、GB 標準，選用增強阻燃材料，安全可靠。提供6-185mm2 多種規格線徑和1-4分支線路，可滿足各種需求。
      XKM-1 series wire clamp (anti-electricity-theft) is used for connecting the electricpower inlet wire and branch conductors in one-household one-meter project. It’s unn-ecessary to cut down the main cable. Any position of cable can be made the branch.It has advantages such as convenient installation, small contact resistance, low temp-erature rise, perfect-insulation anti-electricity theft protective cover. It is in conformitywith the IEC standard, GB standard. It employs reinforced flame-resistance material,safe and reliable. There are various specification (6-185mm2) and 1-4 branch circuitssupplied to satisfy kinds of demands.

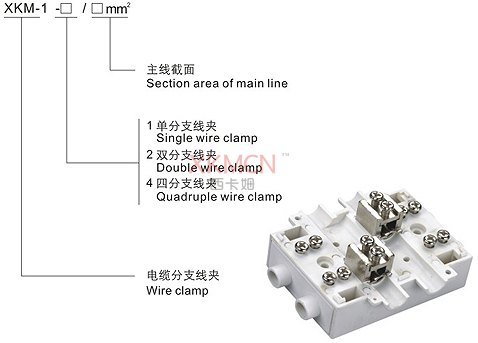

二、型號及其含義 Model description
XKM-1-1主干線單分支線夾(一進一出)
XKM-1-1 Single wire clamp (one-inlet one-outlet)

型 號
Model 		主線截面(mm2)
Section area
of main line 		Ⅰ分支線
截面(mm2)
Section area of
Ⅰbranch wire 		Ⅱ分支線
截面(mm2)
Section area of
Ⅱ branch wire 		主線尺寸(mm2)
Size of main line 		訂貨號
Order no

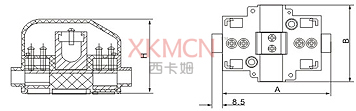

A B H
XKM-1-1/25 10~25 6~16 6~16 80 70 51 110224
XKM-1-1/50 35~50 10~25 6~16 10~25 84 70 55 110225
XKM-1-1/120 70~120 25~50 10~25 25~50 90 70 67 110226
XKM-1-1/185 150~185 70~95 50~70 70~95       110227
XKM-1-2主干線二分支線夾(二進二出)
XKM-1-2 Double wire clamp (two-inlet two-outlet)

型 號
Model 		主線截面(mm2)
Section area
of main line 		Ⅰ分支線
截面(mm2)
Section area of
Ⅰbranch wire 		Ⅱ分支線
截面(mm2)
Section area of
Ⅱ branch wire 		主線尺寸(mm2)
Size of main line 		訂貨號
Order no
A B H
XKM-1-2/25 10~25 6~16 6~16 100 89 51 110228
XKM-1-2/50 35~50 10~25 6~16 10~25 108 89 55 110229
XKM-1-2/120 70~120 25~50 10~25 25~50 120 89 67 110230
XKM-1-4主干線四分支線夾(四進四出)
XKM-1-4 Quadruple wire clamp (four-inlet four-outlet)

型 號
Model 		主線截面(mm2)
Section area
of main line 		Ⅰ分支線
截面(mm2)
Section area of
Ⅰbranch wire 		Ⅱ分支線
截面(mm2)
Section area of
Ⅱ branch wire 		主線尺寸(mm2)
Size of main line 		訂貨號
Order no
A B H
XKM-1-4/25 10~25 6~16 6~16 150 147 51 110231
XKM-1-4/50 35~50 10~25 6~16 10~25 166 147 55 110232
XKM-1-4/120 70~120 25~50 10~25 25~50 190 147 67 110233
XKM-1-1主干線單分支線夾(一進二出)
XKM-1-1 Single wire clamp of main line (one-inlet two-outlet)

型 號
Model 		主線截面(mm2)
Section area
of main line 		Ⅰ分支線
截面(mm2)
Section area of
Ⅰbranch wire 		Ⅱ分支線
截面(mm2)
Section area of
Ⅱ branch wire 		主線尺寸(mm2)
Size of main line 		訂貨號
Order no
A B H
XKM-1-1/25 10~25 6~16 6~16 80 70 51 110234
XKM-1-1/50 35~50 10~25 6~16 10~25 84 70 55 110235
XKM-1-1/120 70~120 25~50 10~25 25~50 90 70 67 110236
XKM-1-1/185 150~185 70~95 50~70 70~95       110237
XKM-1-2主干線二分支線夾(二進四出)
XKM-1-2 Double wire clamp (two-inlet four-outlet)

型 號
Model 		主線截面(mm2)
Section area
of main line 		Ⅰ分支線
截面(mm2)
Section area of
Ⅰbranch wire 		Ⅱ分支線
截面(mm2)
Section area of
Ⅱ branch wire 		主線尺寸(mm2)
Size of main line 		訂貨號
Order no
A B H
XKM-1-2/25 10~25 6~16 6~16 100 89 51 110238
XKM-1-2/50 35~50 10~25 6~16 10~25 108 89 55 110239
XKM-1-2/120 70~120 25~50 10~25 25~50 120 89 67 110240
XKM-1-4主干線四分支線夾(四進八出)
XKM1-4 Quadruple wire clamp (four-inlet eight-outlet)

型 號
Model 		主線截面(mm2)
Section area
of main line 		Ⅰ分支線
截面(mm2)
Section area of
Ⅰbranch wire 		Ⅱ分支線
截面(mm2)
Section area of
Ⅱ branch wire 		主線尺寸(mm2)
Size of main line 		訂貨號
Order no
A B H
XKM-1-4/25 10~25 6~16 6~16 150 147 51 110241
XKM-1-4/50 35~50 10~25 6~16 10~25 166 147 55 110242
XKM-1-4/120 70~120 25~50 10~25 25~50 190 147 67 110243
XKM-1-5主干線五分支線夾(五進五出)
XKM-1-1 Single wire clamp of main line (one-inlet two-outlet)

型 號
Model 		主線截面(mm2)
Section area
of main line 		Ⅰ分支線
截面(mm2)
Section area of
Ⅰbranch wire 		Ⅱ分支線
截面(mm2)
Section area of
Ⅱ branch wire 		主線尺寸(mm2)
Size of main line 		訂貨號
Order no
A B H
XKM-1-5/50 35~50 10~25 6~16 10~25 202 168 55 110244
XKM-1-5/120 70~120 25~50 10~25 25~50 233 176 67 110245

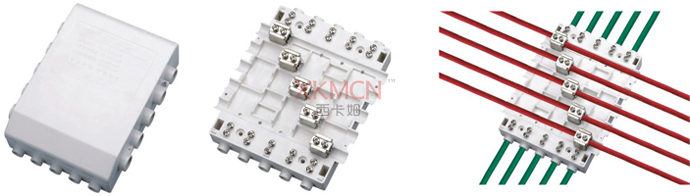

XKM-1-5主干線五分支線夾(五進十出)
XKM-1-5 Quintuple branch clamp (five-inlet ten-outlet)

型 號
Model 		主線截面(mm2)
Section area
of main line 		Ⅰ分支線
截面(mm2)
Section area of
Ⅰbranch wire 		Ⅱ分支線
截面(mm2)
Section area of
Ⅱ branch wire 		主線尺寸(mm2)
Size of main line 		訂貨號
Order no
A B H
XKM-1-5/50 35~50 10~25 6~16 10~25 202 168 55 110246
XKM-1-5/120 70~120 25~50 10~25 25~50 233 176 67 110247
